Portable ultrasonic flaw detectors are essential for on-site material evaluation, thickness measurements, and defect characterization. This guide highlights five top options with strong depth, precision, and portability, helping professionals choose devices that fit steel, alloys, and critical components. Each pick blends rugged design with advanced imaging, calibration, and data export capabilities to support AWS, NB/T, and GB standards where applicable.
Summary Of Selected Products
| Product | Brand | Key Strengths | Imaged Features |
|---|---|---|---|
| GUF750 Ultrasonic Flaw Detector | GOYOJO | High bandwidth, dual-gate alarms, wide imaging | 5″ IPS touchscreen, 0.1–20 MHz, 700-group imaging |
| TFD807C Ultrasonic Flaw Detector | TMTECK | Portable, multi-interface, fast updates | ARM+FPGA core, 640×480 color TFT, 60 Hz LCD |
| VTSYIQI Ultrasonic Flaw Detector | VTSYIQI | Large channel set, flexible DAC/AVG, USB storage | 0–10000 mm range, 0.2–20 MHz, 500 channels |
| Graigar GR900 | Graigar | Automated calibration, precise flaw location | 0–10000 mm range, automated gain/zero offset |
| Graigar MFD350B | Graigar | English display, user-friendly controls | 0–6000 mm, 0.5–10 MHz, TFT display |
GOYOJO GUF750 Ultrasonic Flaw Detector
The GOYOJO GUF750 offers precise UT performance with a wide bandwidth and high sampling rate, enabling sub-millimeter defect resolution. It features a 5″ IPS touchscreen for quick parameter adjustments and real-time imaging, supporting 0.1–20 MHz bandwidth with 100MSPS hardware sampling (400MSPS equivalent). A 120 dB gain range with 0.1 dB steps and 0.5% horizontal linearity helps characterize small cracks, inclusions, and porosity. The device supports dual-gate (A/B) alarms, RF/full-wave demodulation, and compliance with industry standards such as AWS D1.1, NB/T 47013, and GB/T 11345. It enables 700-group cross-sectional imaging and stores up to 500 frames of B-scan data, plus thickness maps, on an SD card. This combination suits in-field inspections of welded joints, corrosion monitoring, and material integrity checks in steel and alloy structures.
TMTECK Ultrasonic Flaw Detector TFD807C
The TMTECK TFD807C emphasizes portability with a compact, one-handed form and an ARM+FPGA core that enhances speed and reliability. Its multitasking operating system and master-slave menu streamline workflows, while shortcut keys and a digital rotary knob enable rapid setting changes in the field. The unit includes a full-color 640×480 TFT display and supports four operating interface styles, offering clear waveform visualization and flexible display options. The 60 Hz LCD update helps operators detect subtle waveform changes in demanding environments, and the device is designed for durability under rugged field conditions.
VTSYIQI Ultrasonic Flaw Detector
The VTSYIQI unit supports a broad detection range up to 10,000 mm and a 0.2–20 MHz frequency range, making it suitable for high-volume inspection across electric power, petrochemical, boiler, steel structure, and aerospace settings. It features 500 independent detection channels and advanced data handling with DAC and AVG curves, multiple gate and alarm options, and automatic probe calibration. The instrument supports single/double crystal probes and provides flexible display modes with both angle and K-value representations. It is designed for non-destructive testing where precision, data traceability, and robust measurement capabilities matter most.

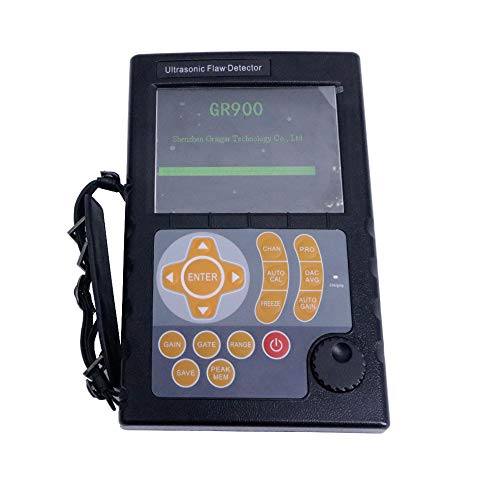

Graigar GR900 Portable Ultrasonic Flaw Detector
The Graigar GR900 combines automated calibration for transducers with automated gain, peak hold, and peak memory features to streamline flaw localization. It provides automated display of precise flaw location including depth, distance, amplitude, and dB, supporting reliable defect assessment in a range up to 10,000 mm. The device focuses on rapid, repeatable measurements with a user-friendly interface and a robust data presentation workflow, making it well-suited for field audits, pipeline inspections, and structural evaluations where precise flaw mapping is critical.
Graigar MFD350B Digital Ultrasonic Flaw Detector
The Graigar MFD350B offers an English display with a master-slave menu and shortcut keys, complemented by a digital swiftly knob for fast adjustments. Its 0–6000 mm range and 0.5–10 MHz operating band cover a wide array of NDT tasks, including precise flaw highlighting across metals and composites. The TFT LCD display allows background and wave color customization, with adjustable brightness for bright field conditions. The device emphasizes ease-of-use and reliable operation in demanding environments, with a focus on efficient data capture and straightforward fault interpretation.
Buying Guide
Key purchase considerations
- Frequency range and bandwidth: Higher bandwidth improves defect resolution, especially for sub-millimeter features; ensure the detector supports the material and thickness you inspect.
- Imaging and data export: Look for B-scan imaging, A/B-scan capabilities, and SD card/USB storage to enable reporting and traceability.
- Alarms and gating: Dual-gate or customizable alarm logic helps distinguish defect signals from noise in challenging environments.
- Display and controls: A bright, high-contrast display and intuitive controls (touchscreen or rotary knob) speed field operations.
- Portability and ruggedness: Weight, battery life, and a durable enclosure determine performance in field conditions.
- Standards compliance: Check AWS D1.1, NB/T 47013, GB/T 11345 compatibility for regulated industries.
- Channel count and calibration: More channels and automated calibration features improve measurement accuracy and setup efficiency.
Comparative considerations
- Best for high-resolution imaging: GOYOJO GUF750 offers 700-group imaging and sub-millimeter defect detection with a large touch display.
- Best for portability and quick setup: TMTECK TFD807C emphasizes simple operation and fast updates with a compact form factor.
- Best for large data handling: VTSYIQI provides 500 channels and flexible DAC/AVG curves for complex inspection tasks.
- Best for automated flaw localization: Graigar GR900 focuses on automated calibration and precise location measurement.
- Best for budget-friendly field use: Graigar MFD350B offers essential features with an English-centric interface and configurable visuals.
